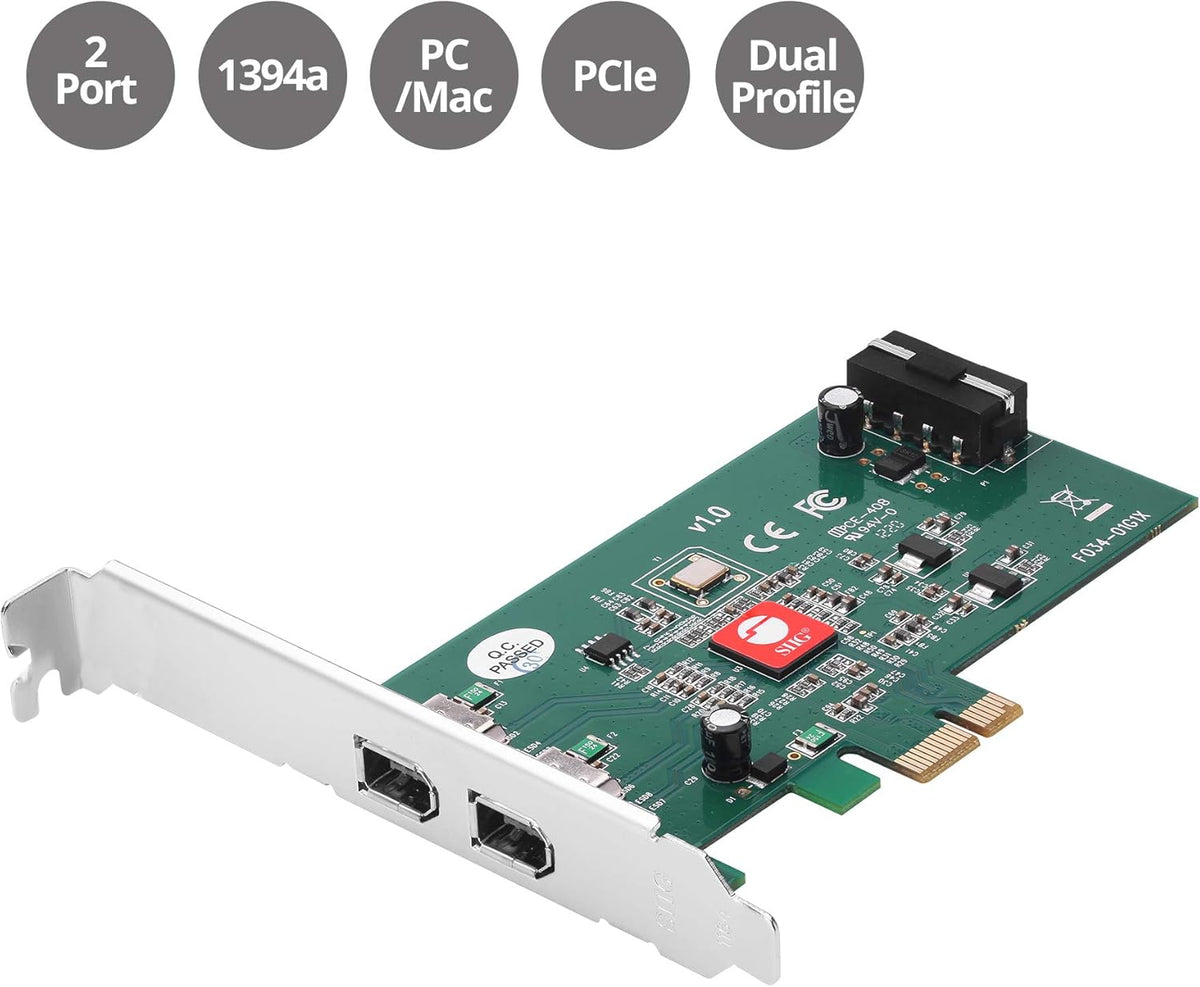

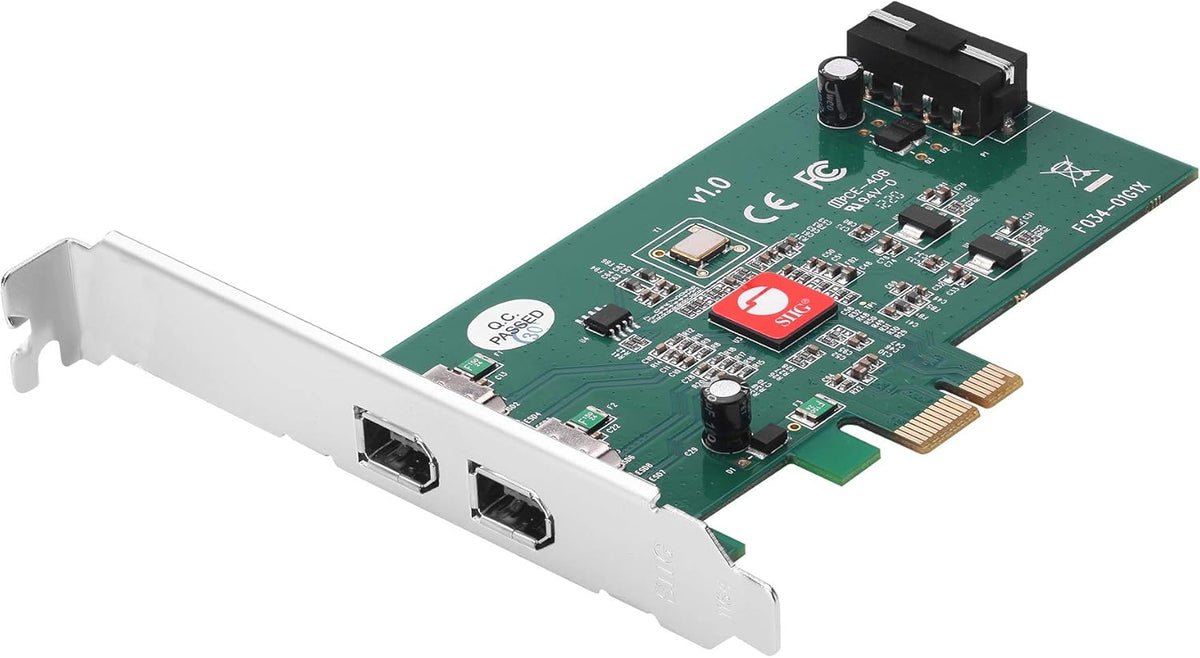

2-Port FireWire 400 PCIe Card D3393
2-Port FireWire 400 PCIe Card D3393
PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots of different lane widths

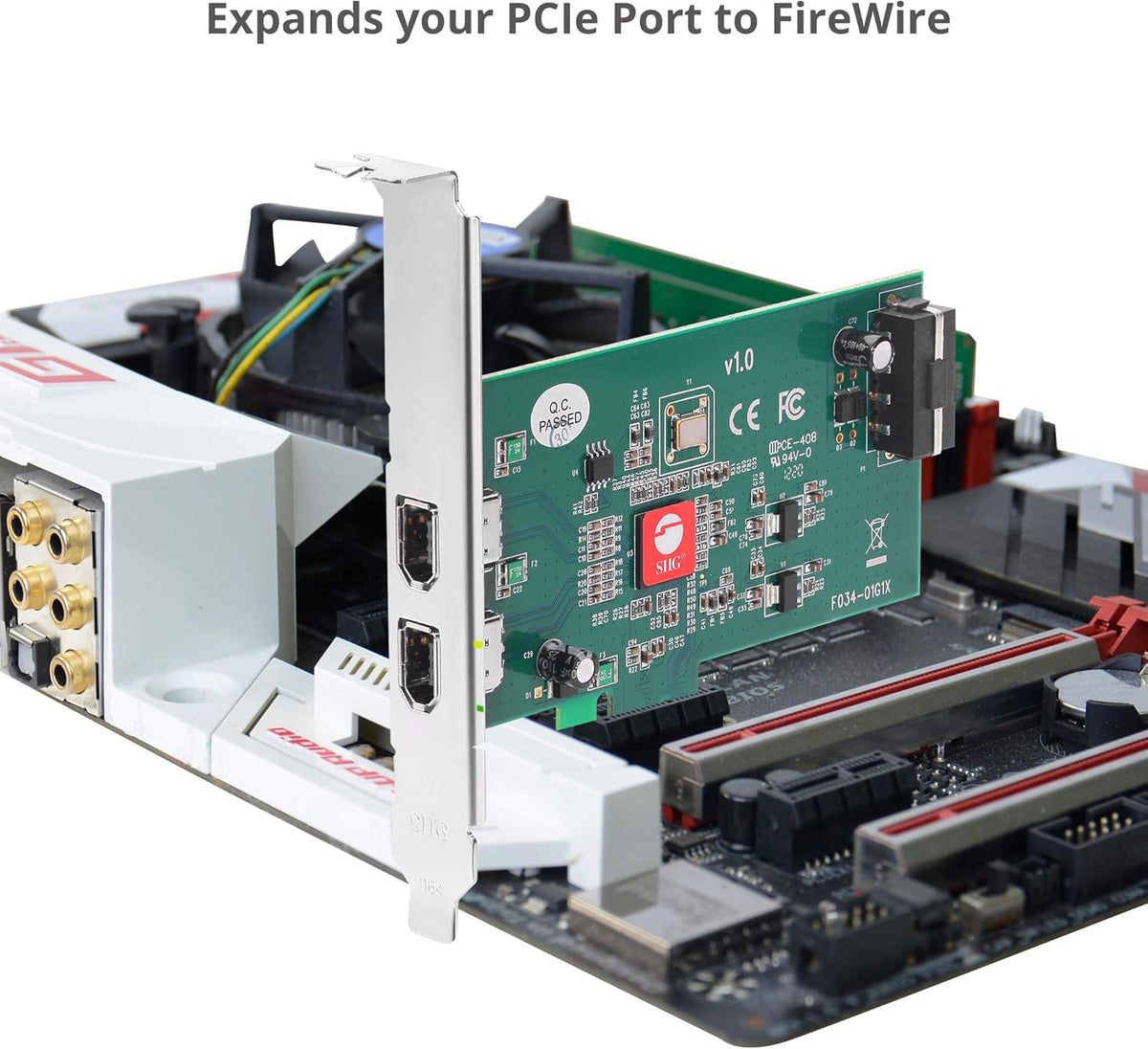

Installs in any available PCI Express slot Supports data rates up to 400Mbps

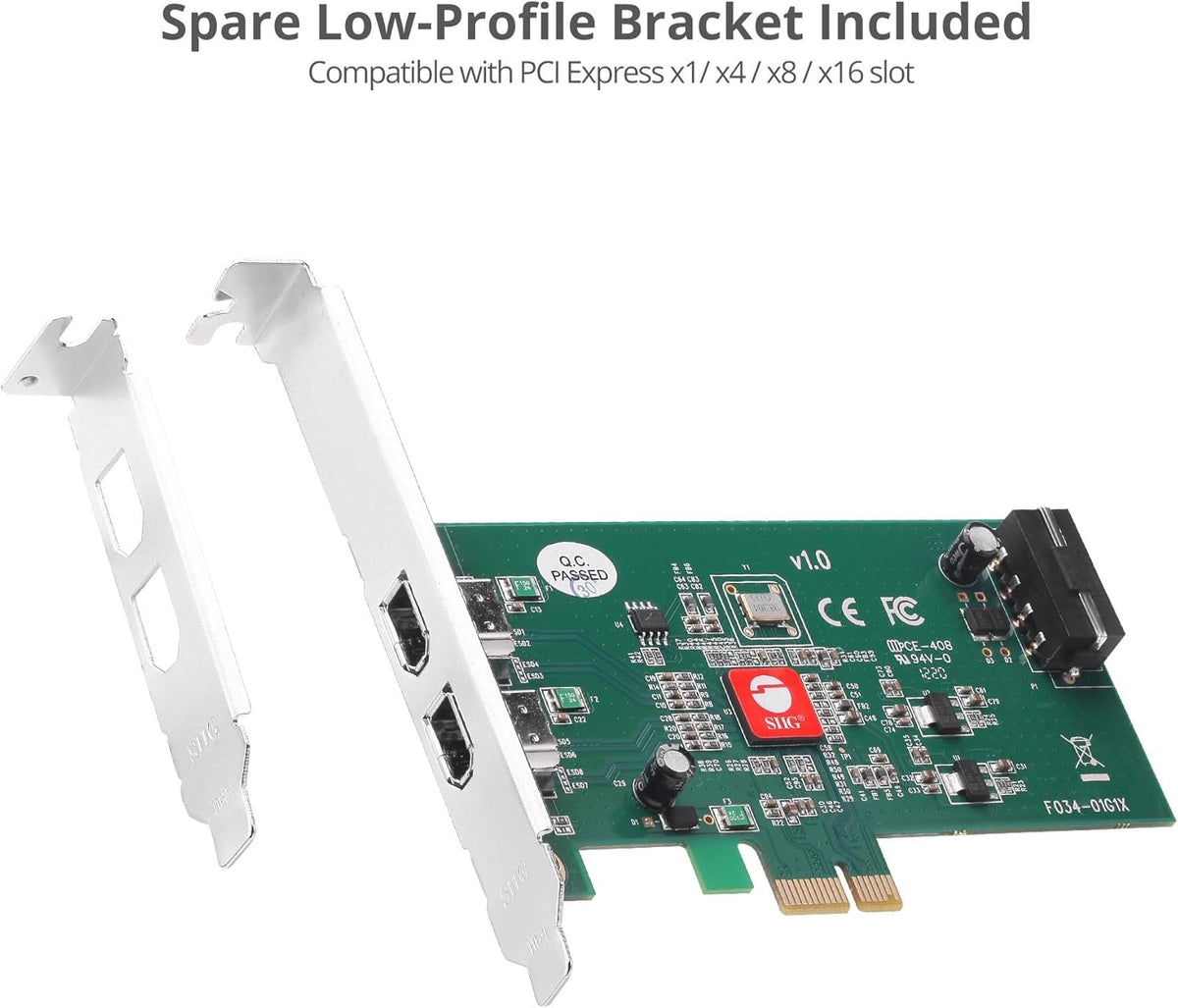

The included standard height and low-profile brackets allow the adapter to be installed into either full-height and low-profile system chassis
Works with FireWire (1394a) devices including DV camcorders, CD-RW/DVD-ROMs, portable hard disk enclosures, digital cameras, and many other audio/video devices
Plug-and-play installation no driver installation is required
Specifications:
Chipset: TI XIO2213BZAY
Bus type: PCI Express x1
Compliant with PCI Express Base Specification Revision 1.0a
Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
Port type:

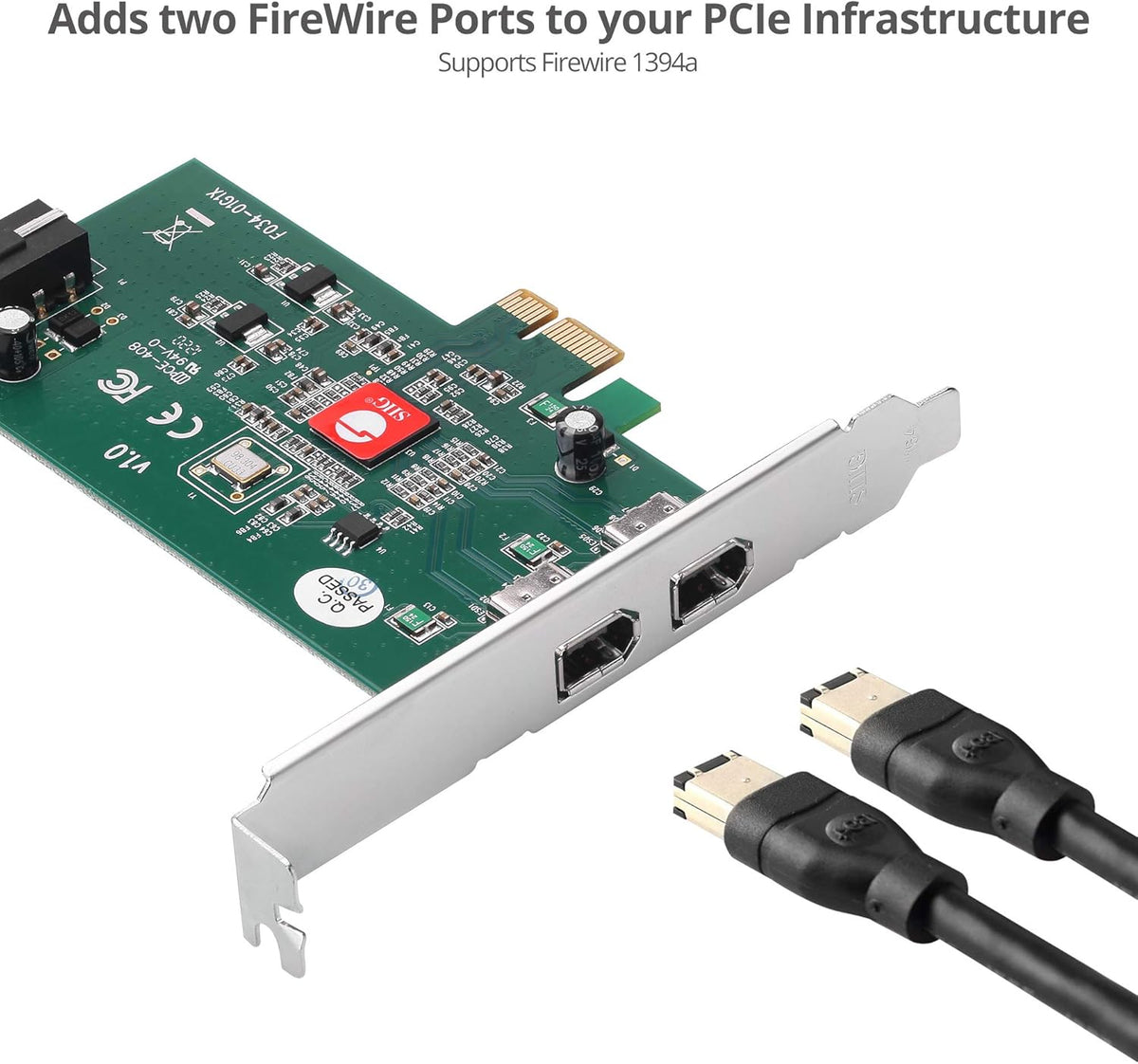

Two, 6-pin, External, FireWire 400 (1394a), Female
Power output: 12V/1A (per port), Onboard power connector optional
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports Firewire serial bus data transfer rates of 100, 200 and 400Mb/sec and supports up to 63 devices
Onboard power connector is included to provide reliable power source
Product:
Dimensions (with full height bracket): 4.72' (L) x 0.83' (H) x 5.28' (W)
Weight: 0.12 lbs
Color: Green
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
System Requirements:
PCI Express enabled PC or Mac® computer with an available PCI Express slot

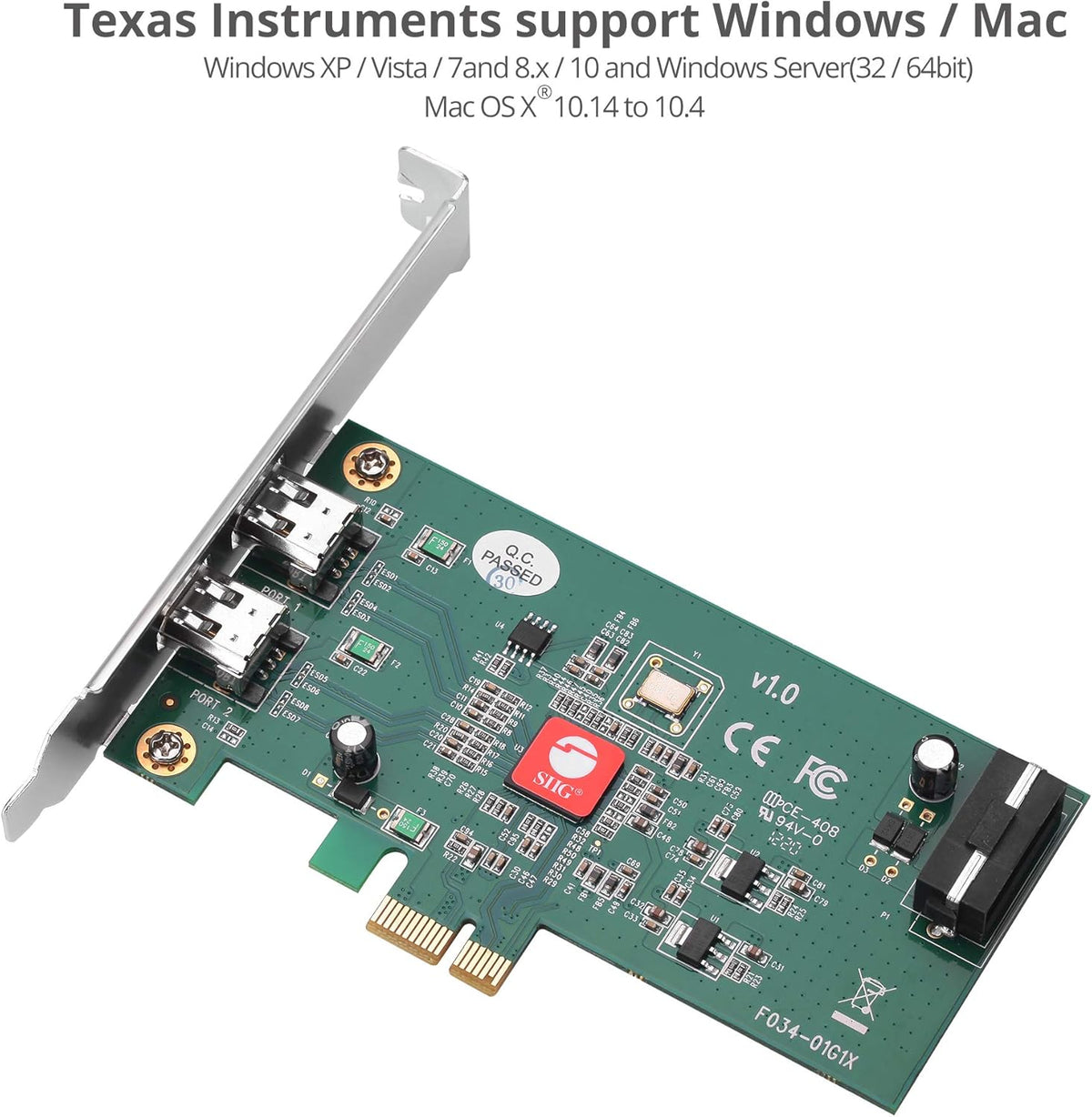

Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
Mac OS X® 10.4 to 10.15

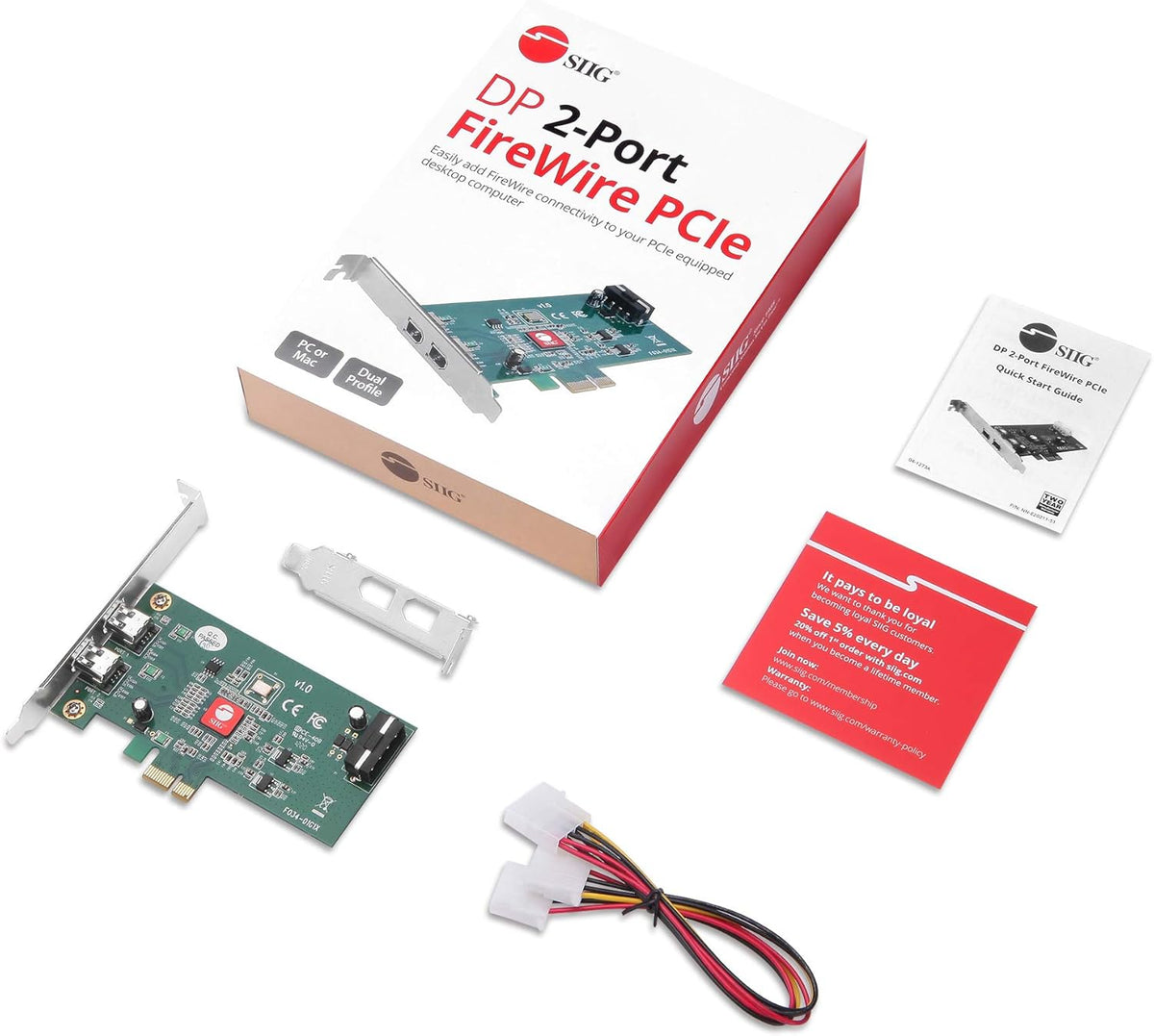

Package contents:
DP Firewire 2-Port PCIe
Spare low-profile bracket
Y-split power cable
User reference guide
